Ocut Hartmetalleinsatz CCMT09T302 CCMT09T304 Fräsersatz für Stahl / Edelstahl

☛Uses☛: Suitable for processing ordinary steel and ordinary stainless steel. Correct cutting action reduces cutting force and extends tool life.
☛10 Sets☛: The kit includes 10 cemented carbide blades, so you can easily replace damaged blades.
☛High Strength☛: high-quality hard alloy cutter head, exquisite workmanship, high strength, high toughness, stable and durable use.
☛Stable and Durable☛: Metal surface treatment, good wear resistance and good chemical stability.

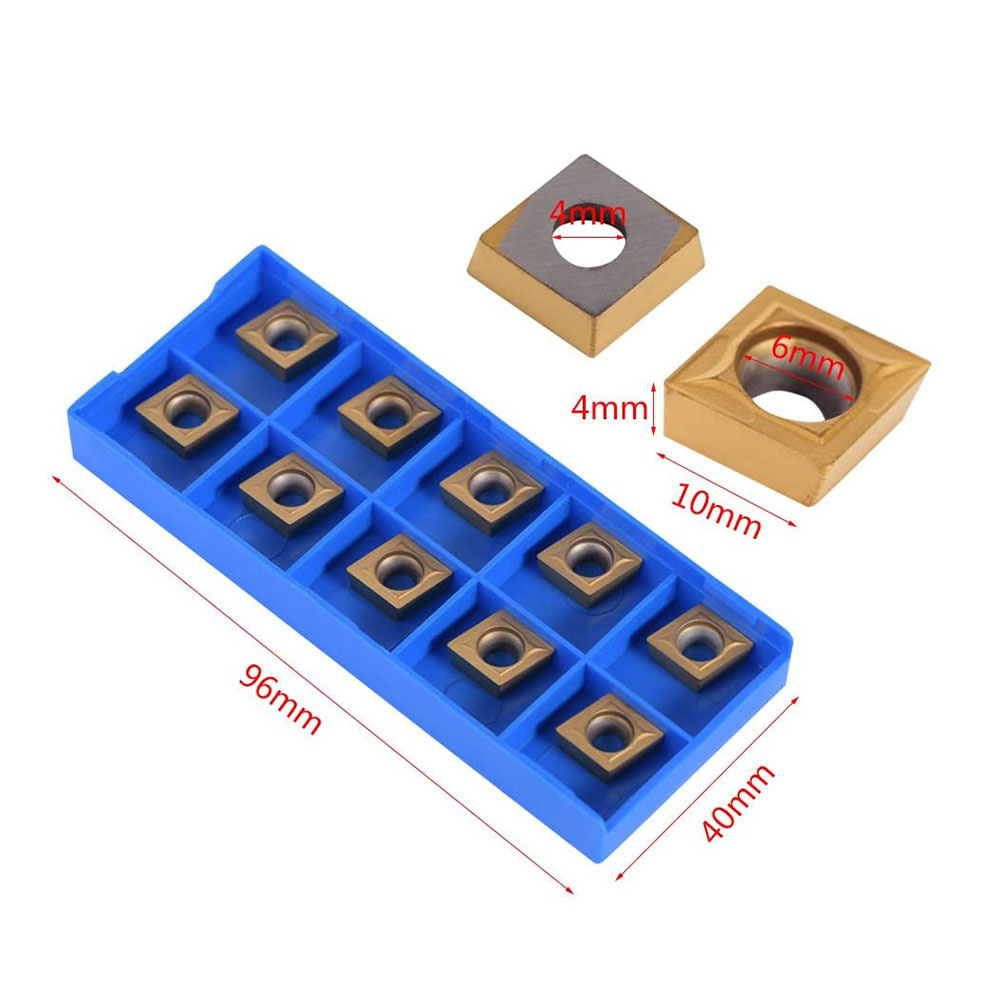

☛Size☛: 6 x10 x 4mm / 0.47 x 0.39 x 0.16inch, please refer to the size marked in the picture, and the blade description in the description below.
Specifications:

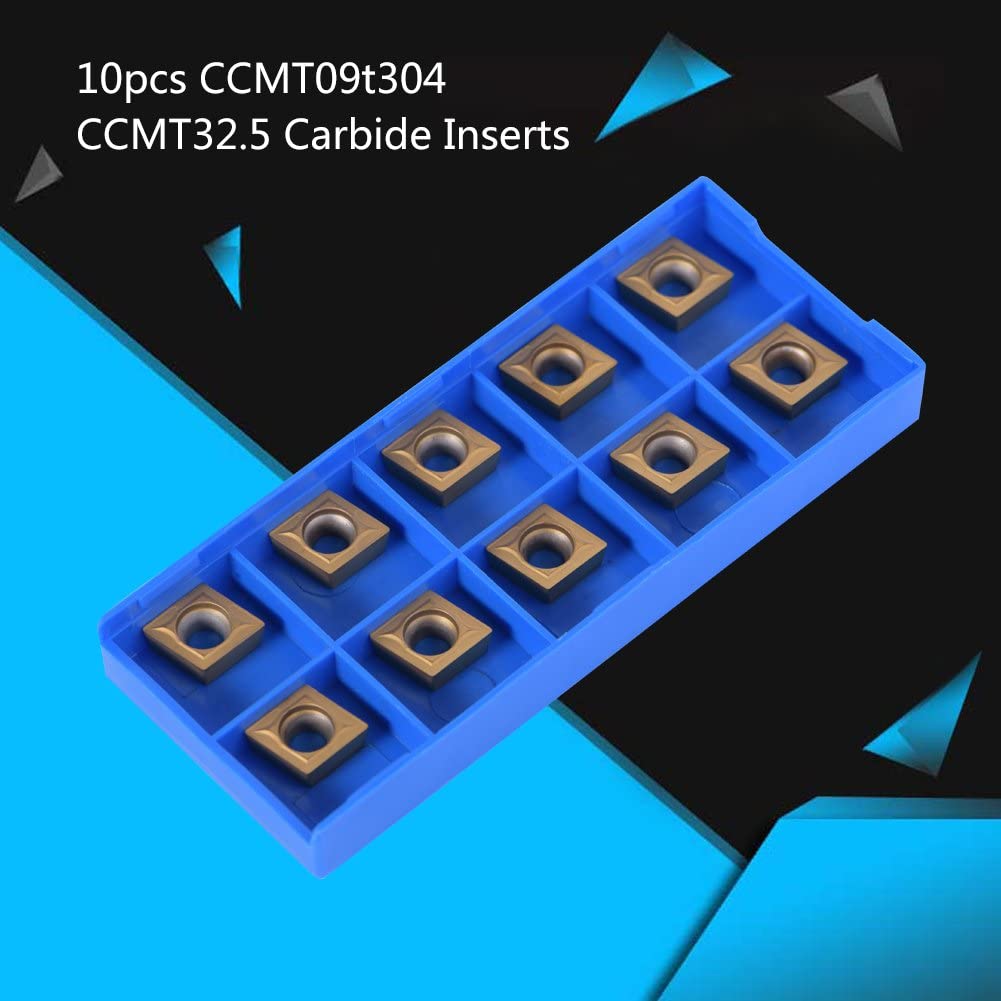

Modell: CCMT09t304 CCMT32.5
Material: carbide
Size: 6 x10 x 4mm/0.47 x 0.39 x 0.16inch
Gewicht: 40g
Color: gold
Quantity: 10 PCS
Blade description:
C = blade shape, C is 80 degrees diamond
C = clearance angle is 7 degrees( with clearance angle is single blade)
M = blade tolerance(You can ignore it)
T = symbol of the hole slot(You can ignore it)
09 = cutting edge is 9mm
T3= the blade thickness is 3.97 mm
04 = R degrees of sharp Angle (02 = R0.2, 04 = R0.4, 08 = R0.8)
Packaging: plastic box(yellow, red, blue random)
